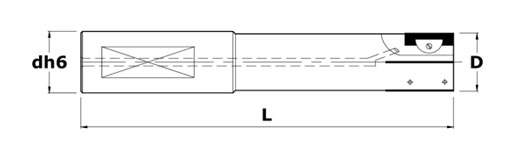

| Designation | Length (L) | Diameter (D) | Blade Type | d h6 |
|---|---|---|---|---|
| SP-SLBTR-100-7.00-8.00 | 100 | 7.00–7.99 | SP-40 | 10 |
| SP-SLBTR-100-8.01-9.99 | 100 | 8.00–9.99 | SP-40 | 10 |
| SP-SLBTR-120-10.00-11.99 | 120 | 10.00–11.99 | SP-40 | 12 |
| SP-SLBTR-120-12.00-14.99 | 120 | 12.00–14.99 | SP-41 | 16 |
| SP-SLBTR-120-15.00-15.99 | 120 | 15.00–15.99 | SP-41 | 18 |
| SP-SLBTR-130-16.00-17.99 | 130 | 16.00–17.99 | SP-41 | 18 |
| SP-SLBTR-130-18.00-19.99 | 130 | 18.00–19.99 | SP-41 | 21 |
| SP-SLBTR-130-20.00-21.99 | 130 | 20.00–21.99 | SP-41 | 25 |
| SP-SLBTR-150-22.00-23.99 | 150 | 22.00–23.99 | SP-41 | 25 |
| SP-SLBTR-180-24.00-29.99 | 180 | 24.00–29.99 | SP-42 | 32 |
| SP-SLBTR-180-30.00-33.99 | 180 | 30.00–33.99 | SP-43 | 32 |
| SP-SLBTR-180-34.00-37.99 | 180 | 34.00–37.99 | SP-43 | 32 |
| Customized size can be done as per the customer requirement. | ||||
