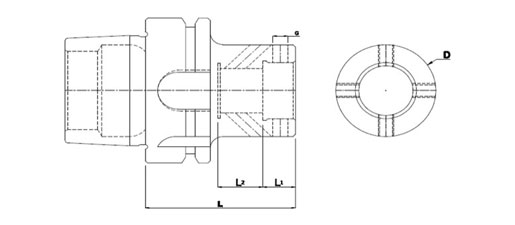

| Taper Size | Designation | GPL (L) | L1 | L2 | OD(D) | G |
|---|---|---|---|---|---|---|
| HSK-50 | SP-HSK-5-M-6-3 | 60 | 11 | 16 | 30 | M5 |
| SP-HSK-5-M-6-4 | 60 | 13 | 18 | 40 | M6 | |
| HSK-63 | SP-HSK-63-M-6-3 | 60 | 11 | 16 | 30 | M5 |
| SP-HSK-63-M-6-4 | 60 | 13 | 18 | 40 | M6 | |
| SP-HSK-63-M-6-5 | 60 | 13 | 21 | 50 | M6 | |
| HSK-100 | SP-HSK-100-M-6-3 | 60 | 11 | 16 | 30 | M5 |
| SP-HSK-100-M-6-4 | 60 | 13 | 18 | 40 | M6 | |
| SP-HSK-100-M-7-5 | 70 | 13 | 21 | 50 | M6 | |
| Customized size can be done as per the customer requirement. | ||||||
