Modular Extension Morse Taper Center

Spectra Modular Tool Holders

Modular Extension Morse Taper Center

Send Enquiry Download

Modular Extension Morse Taper Center

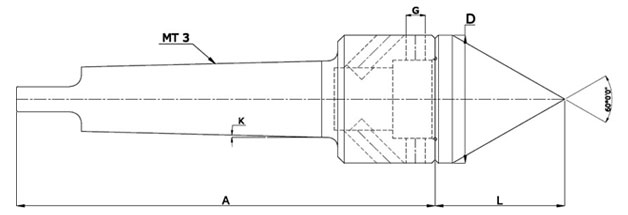

Designation A L D LG K

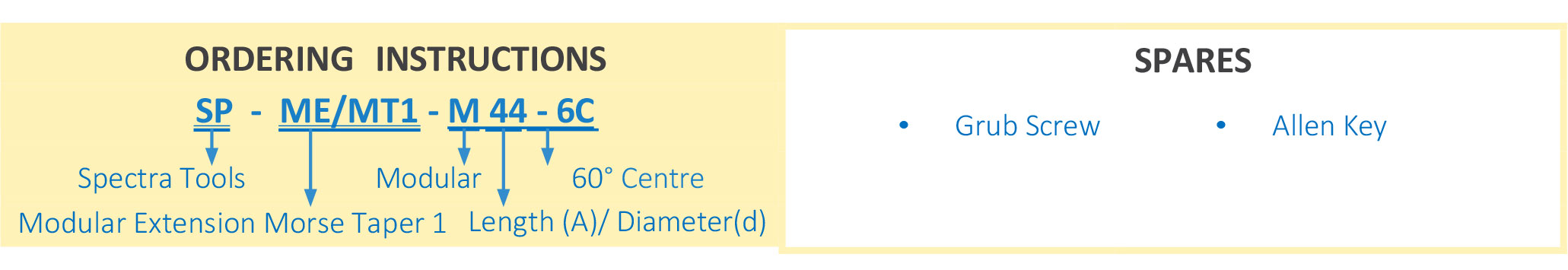

SP-ME/MT1-M33-6C 95.5 30 30 M5 1°25'43"
SP-ME/MT2-M33-6C 105 30 30 M5 1°25'50"
SP-ME/MT3-M44-6C 129 40 40 M6 1°26'16"
SP-ME/MT4-M44-6C 154 40 40 M6 1°29'15"
SP-ME/MT5-M44-6C 186 40 40 M6 1°30'26"
Holders: BT, HSK, ISO, BBT
