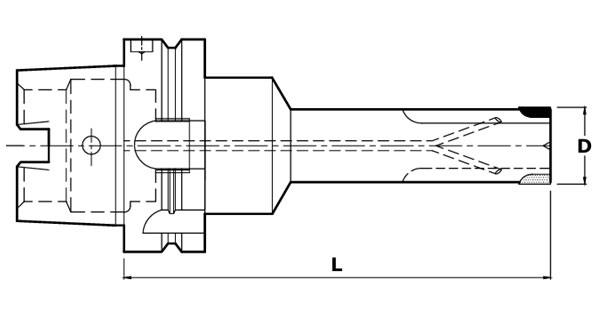

| Designation | Taper Size | Length (L) | Diameter (D) | |
|---|---|---|---|---|
| SP-HSKTBR-PCD-100-14 | 50 | 100 | 12 | |
| SP-HSKTBR-PCD-120-16 | 50 | 120 | 16 | |
| SP-HSKTBR-PCD-120-18 | 50 | 120 | 18 | |
| SP-HSKTBR-PCD-120-20 | 50 | 120 | 20 | |
| SP-HSKTBR-PCD-120-22 | 63 | 120 | 22 | |
| SP-HSKTBR-PCD-130-24 | 63 | 130 | 24 | |
| SP-HSKTBR-PCD-130-26 | 63 | 130 | 26 | |
| SP-HSKTBR-PCD-150-30 | 100 | 150 | 30 | |
| SP-HSKTBR-PCD-180-34 | 100 | 180 | 34 | |
| SP-HSKTBR-PCD-180-38 | 100 | 180 | 38 | |
| Customized size can be done as per the customer requirement. | ||||
