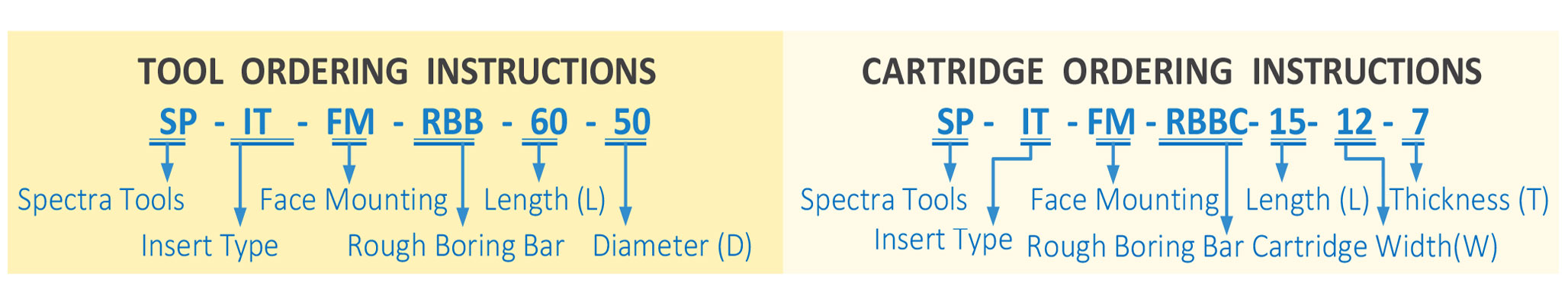

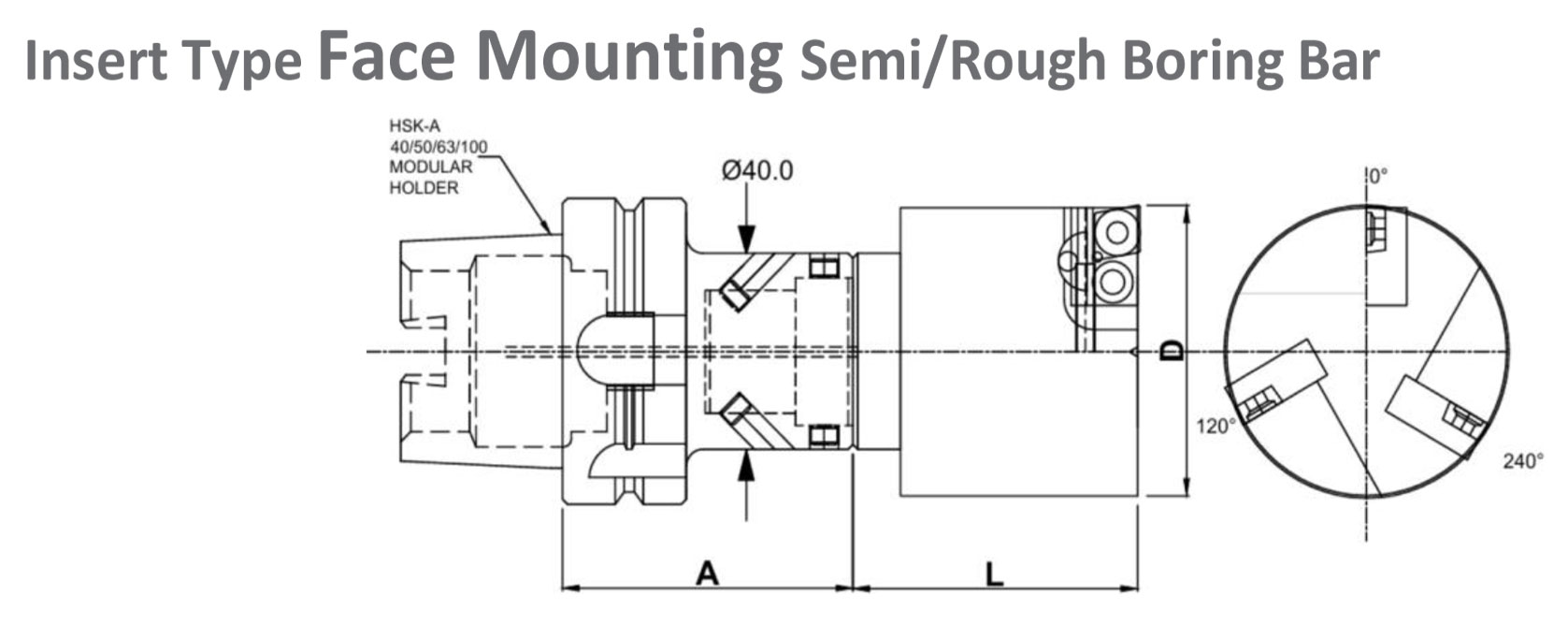

| Designation | Length(L) | Diameter(D) | Z | Cartridge Type |
|---|---|---|---|---|
| SP-IT-FM-RBB-50-30 | 50 | 30 | 3 | SP-IT-FM-RBBC-15-12-7 |
| SP-IT-FM-RBB-50-40 | 50 | 40 | 3 | SP-IT-FM-RBBC-15-12-7 |
| SP-IT-FM-RBB-60-50 | 60 | 50 | 3 | SP-IT-FM-RBBC-15-12-7 |
| SP-IT-FM-RBB-60-60 | 60 | 60 | 3 | SP-IT-FM-RBBC-15-12-7 |
| SP-IT-FM-RBB-60-80 | 60 | 80 | 5 | SP-IT-FM-RBBC-20-14-9 |
| SP-IT-FM-RBB-80-100 | 80 | 100 | 5 | SP-IT-FM-RBBC-20-14-9 |
| SP-IT-FM-RBB-100-120 | 100 | 120 | 5 | SP-IT-FM-RBBC-25-16-11 |
| SP-IT-FM-RBB-100-140 | 100 | 140 | 5 | SP-IT-FM-RBBC-25-16-11 |
• Customized size can be done as per the customer requirement.
• Holder Can be BT/HSK/SK

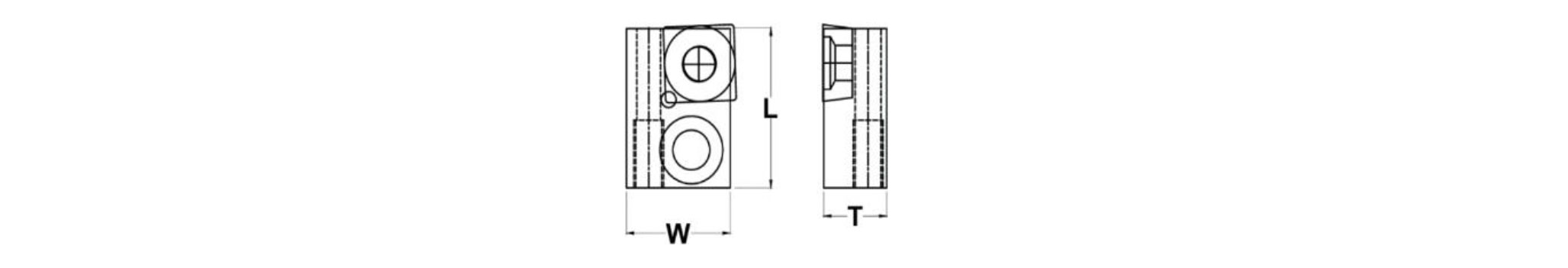

| Designation | Length(L) | Width(W) | Thickness(T) |
|---|---|---|---|
| SP-IT-FM-RBBC-15-12-7 | 15 | 12 | 7 |
| SP-IT-FM-RBBC-20-14-9 | 20 | 14 | 9 |
| SP-IT-FM-RBBC-25-16-11 | 25 | 16 | 11 |
| • Customized size can be done as per the customer requirement. | |||
