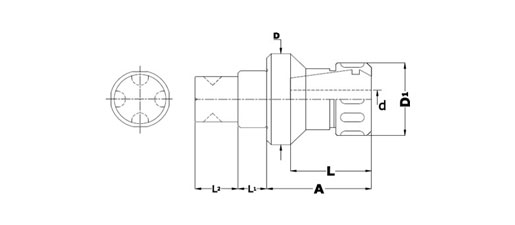

| Designation | Collet Type | A | L | D1 | L1 | L2 | D | Corresponding Collet Range(d) |
|---|---|---|---|---|---|---|---|---|
| SP-ME/CC-3-3-ER 08 | ER 08 | 30 | 20 | 19 | 10 | 16 | 30 | 0.5 to 5.0 |
| SP-ME/CC-3-3-ER 11 | ER 11 | 30 | 20 | 19 | 10 | 16 | 30 | 0.5 to 7.0 |
| SP-ME/CC-4-3-ER 16 | ER 16 | 40 | 30 | 28 | 10 | 16 | 30 | 1.0 to 10.0 |
| SP-ME/CC-5-3-ER 20 | ER 20 | 50 | 40 | 34 | 10 | 16 | 30 | 2.0 to 13.0 |
| SP-ME/CC-5-3-ER 25 | ER 25 | 50 | 40 | 42 | 10 | 16 | 30 | 2.0 to 16.0 |
| SP-ME/CC-3-4-ER 08 | ER 08 | 30 | 20 | 28 | 12 | 18 | 40 | 1.0 to 5.0 |
| SP-ME/CC-3-4-ER 11 | ER 11 | 30 | 20 | 19 | 12 | 18 | 40 | 1.0 to 7.0 |
| SP-ME/CC-4-4-ER 16 | ER 16 | 40 | 30 | 28 | 12 | 18 | 40 | 1.0 to 10.0 |
| SP-ME/CC-5-4-ER 20 | ER 20 | 50 | 40 | 34 | 12 | 18 | 40 | 2.0 to 13.0 |
| SP-ME/CC-5-4-ER 25 | ER 25 | 50 | 40 | 42 | 12 | 18 | 40 | 2.0 to 16.0 |
| SP-ME/CC-6-4-ER 32 | ER 32 | 60 | 50 | 50 | 12 | 18 | 40 | 3.0 to 20.0 |
| SP-ME/CC-6-4-ER 40 | ER 40 | 60 | 50 | 63 | 12 | 18 | 40 | 4.0 to 26.0 |
| SP-ME/CC-8-4-ER 50 | ER 50 | 80 | 60 | 78 | 12 | 18 | 40 | 10.0 to 34.0 |
| SP-ME/CC-6-5-ER 11 | ER 11 | 30 | 20 | 19 | 12 | 21 | 50 | 1.0 to 7.0 |
| SP-ME/CC-6-5-ER 16 | ER 16 | 40 | 30 | 28 | 12 | 21 | 50 | 1.0 to 10.0 |
| SP-ME/CC-6-5-ER 20 | ER 20 | 50 | 40 | 34 | 12 | 21 | 50 | 2.0 to 13.0 |
| SP-ME/CC-6-5-ER 25 | ER 25 | 50 | 40 | 42 | 12 | 21 | 50 | 2.0 to 16.0 |
| SP-ME/CC-6-5-ER 32 | ER 32 | 60 | 50 | 50 | 12 | 21 | 50 | 2.0 to 20.0 |
| SP-ME/CC-6-5-ER 40 | ER 40 | 60 | 50 | 63 | 12 | 21 | 50 | 4.0 to 26.0 |
| SP-ME/CC-8-5-ER 50 | ER 50 | 80 | 60 | 78 | 12 | 21 | 50 | 10.0 to 34.0 |
| SP-ME/CC-8-6-ER 50 | ER 50 | 80 | 60 | 78 | 12 | 24 | 60 | 10.0 to 34.0 |
| Holders: BT, HSK, ISO, BBT | ||||||||
