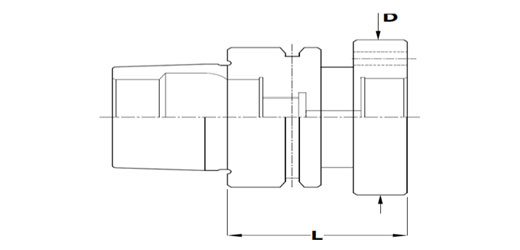

| Taper Size | Designation | GPL (L) | OD (D) |
|---|---|---|---|
| HSK A 40 | SP-HSK-4F-56 | 50 | 60 |
| SP-HSK-4F-57 | 50 | 70 | |
| SP-HSK-4F-66 | 60 | 60 | |
| SP-HSK-4F-67 | 60 | 70 | |
| HSK A 50 | SP-HSK-5F-66 | 60 | 60 |
| SP-HSK-5F-67 | 60 | 70 | |
| SP-HSK-5F-68 | 60 | 80 | |
| HSK A 63 | SP-HSK-63F-66 | 60 | 60 |
| SP-HSK-63F-67 | 60 | 70 | |
| SP-HSK-63F-68 | 60 | 80 | |
| HSK A 100 | SP-HSK-10F-66 | 60 | 60 |
| SP-HSK-10F-67 | 60 | 70 | |
| SP-HSK-10F-68 | 60 | 80 | |
| Customized size can be done as per the customer requirement. | |||
