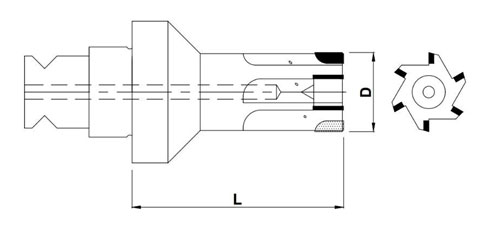

| Designation | Taper Size | Length (L) | Diameter (D) | |
|---|---|---|---|---|

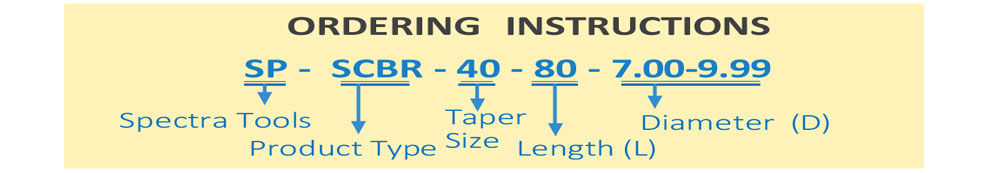

| SP-SCBR-40-80-7.00-9.99 | 40 | 80 | 7.00-9.99 | |
| SP-SCBR-40-80-10.00-12.99 | 40 | 80 | 10.00-12.99 | |
| SP-SCBR-50-100-13.00-15.99 | 50 | 100 | 13.00-15.99 | |
| SP-SCBR-50-100-16.00-18.99 | 50 | 100 | 16.00-18.99 | |
| SP-SCBR-60-130-19.00-21.99 | 60 | 130 | 19.00-21.99 | |
| SP-SCBR-60-130-22.00-24.99 | 60 | 130 | 22.00-24.99 | |
| SP-SCBR-80-160-25.00-27.99 | 80 | 160 | 25.00-27.99 | |
| SP-SCBR-80-160-28.00-30.99 | 80 | 160 | 28.00-30.99 | |
| Customized size can be done as per the customer requirement. | ||||
