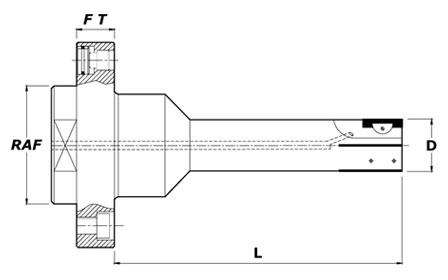

| Designation | Flange Dia (RAF) | Flange Thickness | Length(L) | Diameter (D) | Blade Type |
|---|---|---|---|---|---|
| SP-FBTR-RAF60-100-16.00-18.70 | 60 | 15 | 100 | 16.00–18.70 | SP-41 |
| SP-FBTR-RAF60-120-18.71-19.60 | 60 | 15 | 120 | 18.71–19.60 | SP-41 |
| SP-FBTR-RAF60-120-19.61-20.50 | 60 | 15 | 120 | 19.61–20.50 | SP-41 |
| SP-FBTR-RAF70-120-20.51-23.10 | 70 | 17 | 120 | 20.51–23.10 | SP-42 |
| SP-FBTR-RAF70-120-23.11-26.10 | 70 | 17 | 120 | 23.11–26.10 | SP-42 |
| SP-FBTR-RAF80-130-26.11-28.80 | 80 | 18 | 130 | 26.11–28.80 | SP-42 |
| SP-FBTR-RAF80-130-28.81-31.80 | 80 | 18 | 130 | 28.81–31.80 | SP-42 |
| SP-FBTR-RAF100-150-31.81-34.60 | 100 | 20 | 150 | 31.81–34.60 | SP-42 |
| SP-FBTR-RAF100-180-34.61-36.90 | 100 | 20 | 180 | 34.61–36.90 | SP-43 |
| SP-FBTR-RAF100-180-36.91-40.00 | 100 | 20 | 180 | 36.91–40.00 | SP-43 |
| Customized size can be done as per the customer requirement. | |||||
