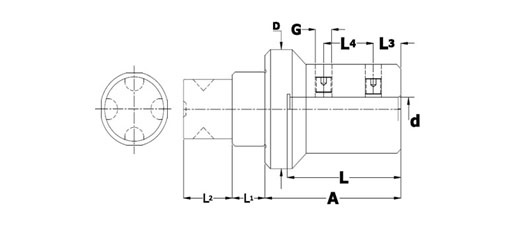

| Designation | A | L | D | L1 | L2 | L3 | L4 | d | G |
|---|---|---|---|---|---|---|---|---|---|
| SP-MEC-5-3-6 | 50 | 40 | 30 | 10 | 16 | 10 | 20 | 6 | M4 |
| SP-MEC-5-3-8 | 50 | 40 | 30 | 10 | 16 | 10 | 20 | 8 | M4 |
| SP-MEC-5-3-10 | 50 | 40 | 30 | 10 | 16 | 10 | 20 | 10 | M6 |
| SP-MEC-5-3-12 | 50 | 40 | 40 | 12 | 18 | 10 | 20 | 12 | M6 |
| SP-MEC-5-4-14 | 50 | 40 | 40 | 12 | 18 | 10 | 20 | 14 | M6 |
| SP-MEC-5-4-16 | 50 | 40 | 40 | 12 | 18 | 15 | 20 | 16 | M6 |
| SP-MEC-5-4-18 | 50 | 40 | 40 | 12 | 18 | 15 | 20 | 18 | M6 |
| SP-MEC-5-4-20 | 50 | 40 | 40 | 12 | 18 | 15 | 20 | 20 | M8 |
| SP-MEC-5-4-25 | 50 | 40 | 40 | 12 | 18 | 15 | 20 | 25 | M8 |
| SP-MEC-5-4-32 | 50 | 40 | 40 | 12 | 18 | 15 | 20 | 32 | M8 |
| SP-MEC-5-5-12 | 50 | 40 | 50 | 12 | 21 | 10 | 20 | 12 | M6 |
| SP-MEC-5-5-14 | 50 | 40 | 50 | 12 | 21 | 10 | 20 | 14 | M6 |
| SP-MEC-5-5-16 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 16 | M8 |
| SP-MEC-5-5-18 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 18 | M8 |
| SP-MEC-5-5-20 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 20 | M8 |
| SP-MEC-5-5-22 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 22 | M8 |
| SP-MEC-5-5-25 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 25 | M8 |
| SP-MEC-5-5-28 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 28 | M8 |
| SP-MEC-5-5-32 | 50 | 40 | 50 | 12 | 21 | 15 | 20 | 32 | M8 |
| Holders: BT, HSK, ISO, BBT | |||||||||
